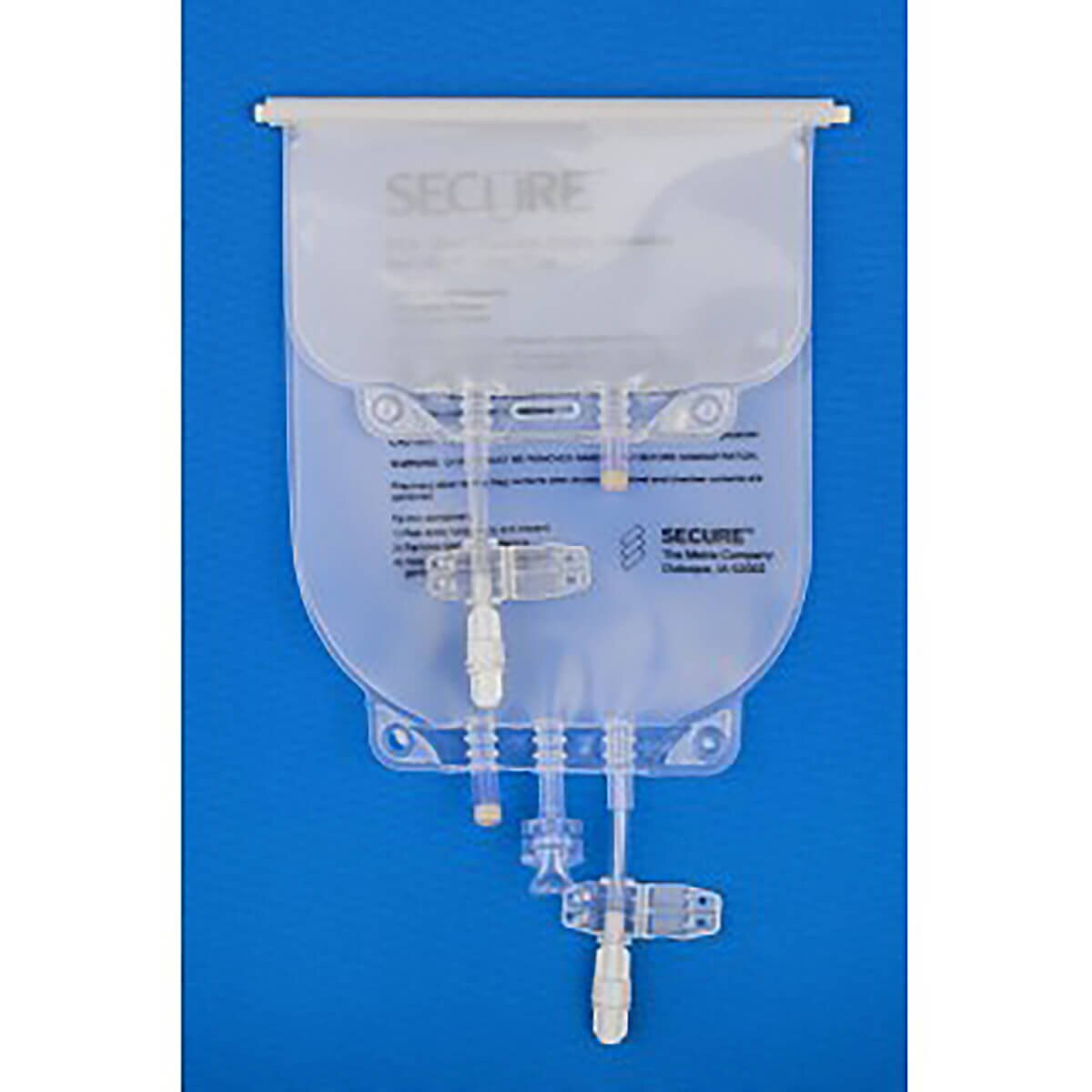

• Metrix Secure 666 Series EVA legless dual-chamber TPN bag with male screw connector, 1,500 mL

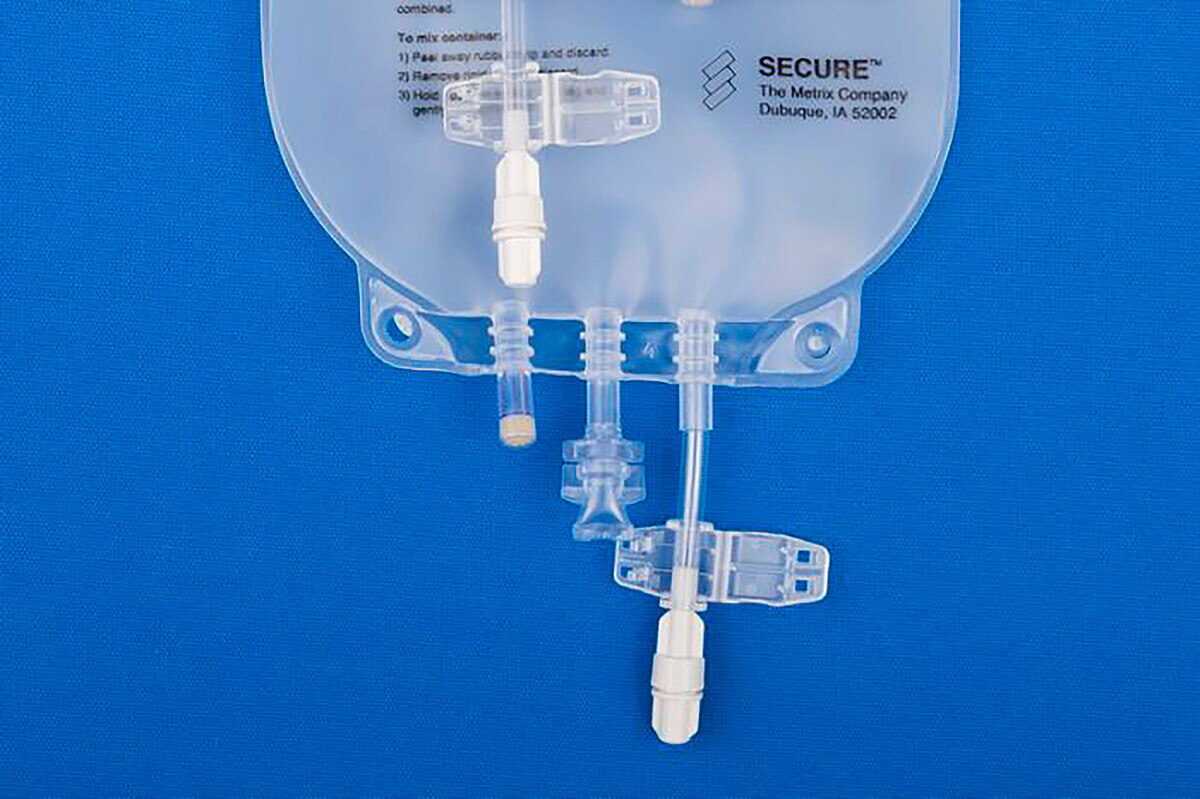

  • Close-up of the lower ports, clamp and male screw connector on the Metrix Secure 666 Series 1,500 mL TPN bag

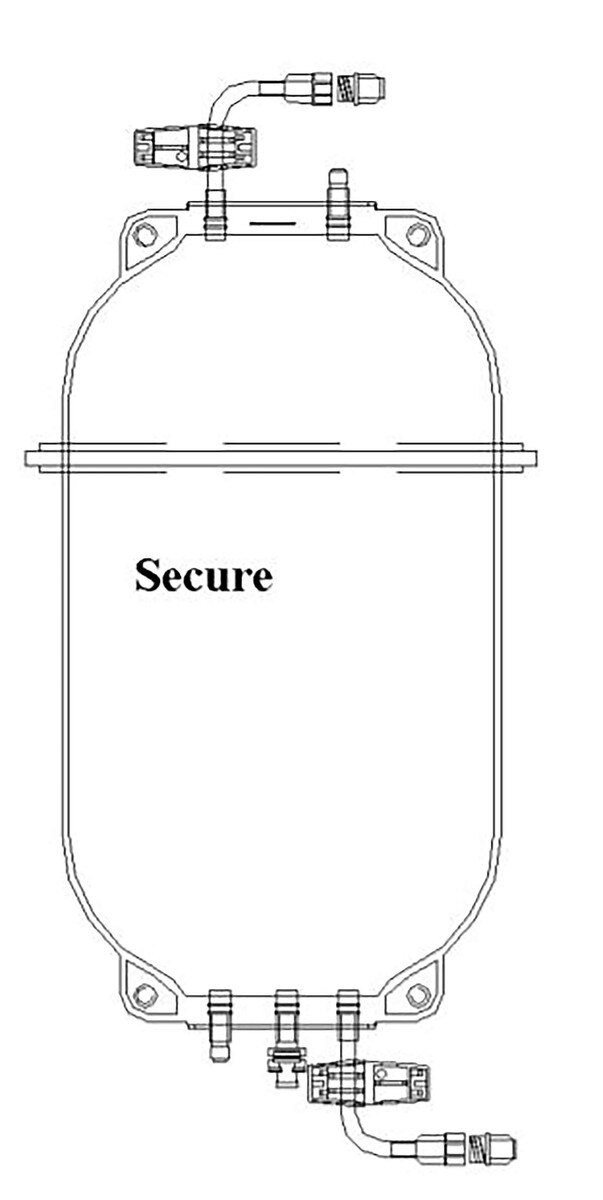

  • Technical diagram of the Metrix Secure 666 Series 1,500 mL EVA dual-chamber TPN bag and port configuration

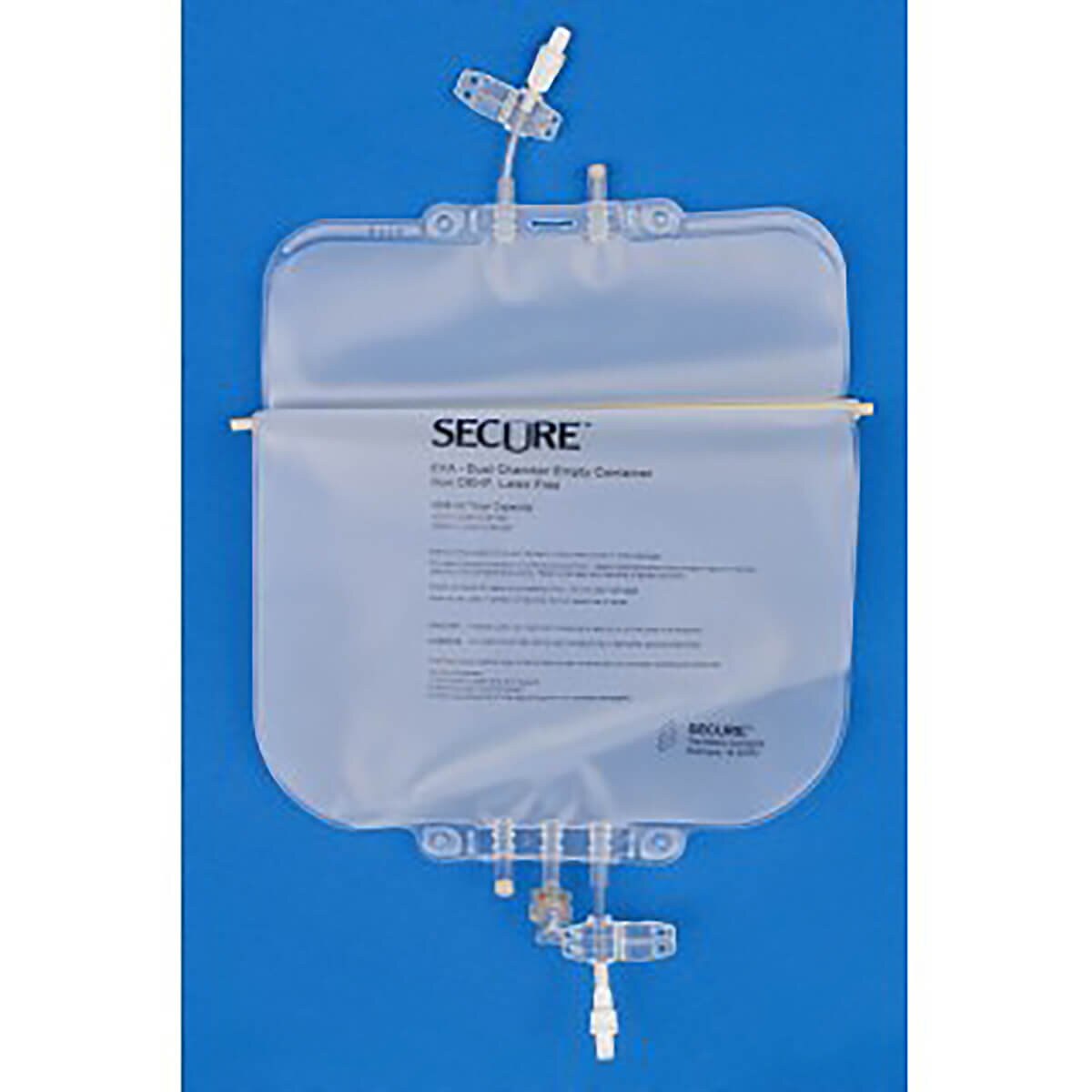

  • Metrix Secure 666 Series EVA legless dual-chamber TPN bag with male screw connector, 4,000 mL
  • Close-up of the lower ports, clamp and male screw connector on the Metrix Secure 666 Series 4,000 mL TPN bag
  • Close-up of the upper chamber ports and clamp on the Metrix Secure 666 Series 4,000 mL TPN bag

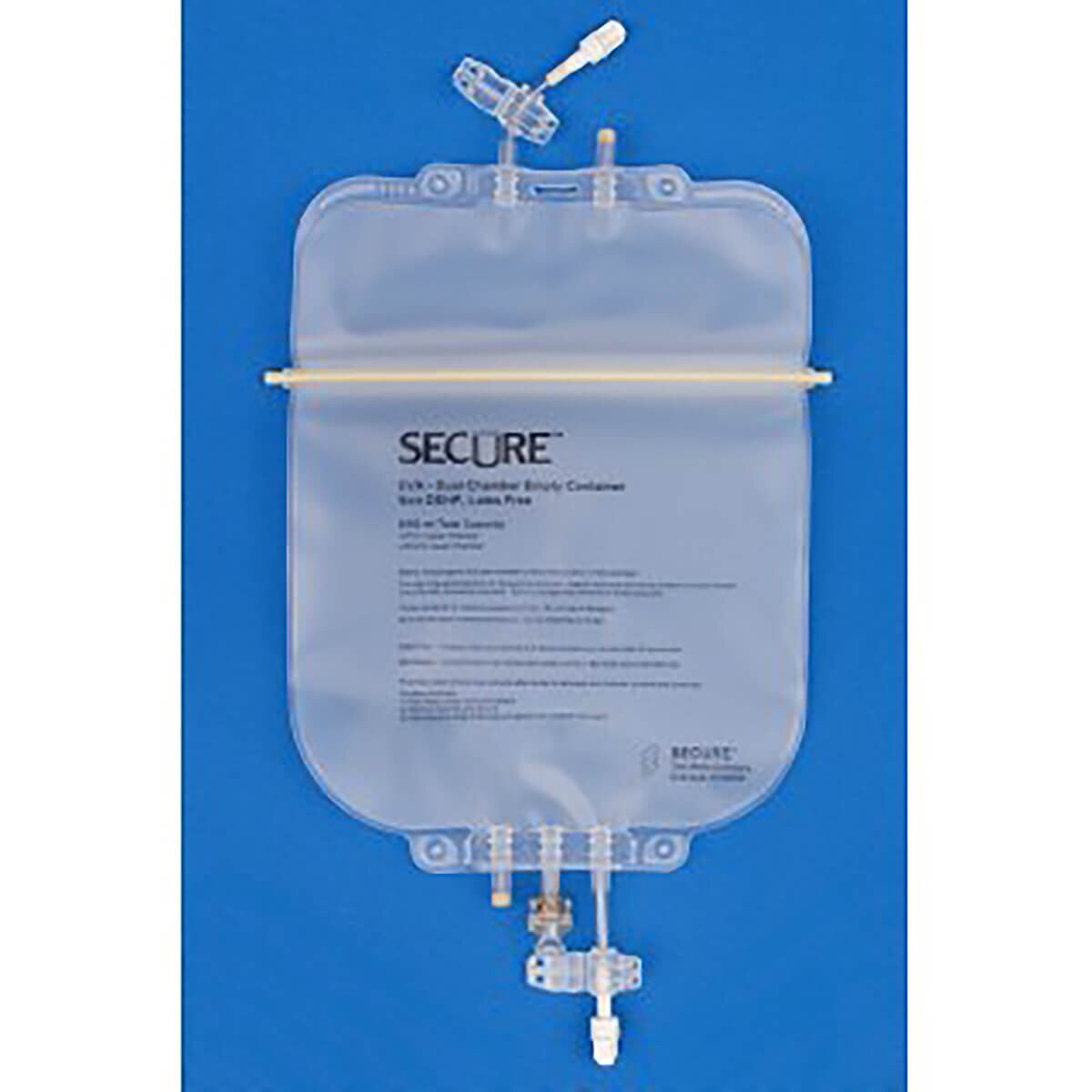

  • Metrix Secure 666 Series EVA legless dual-chamber TPN bag with male screw connector, 3,000 mL

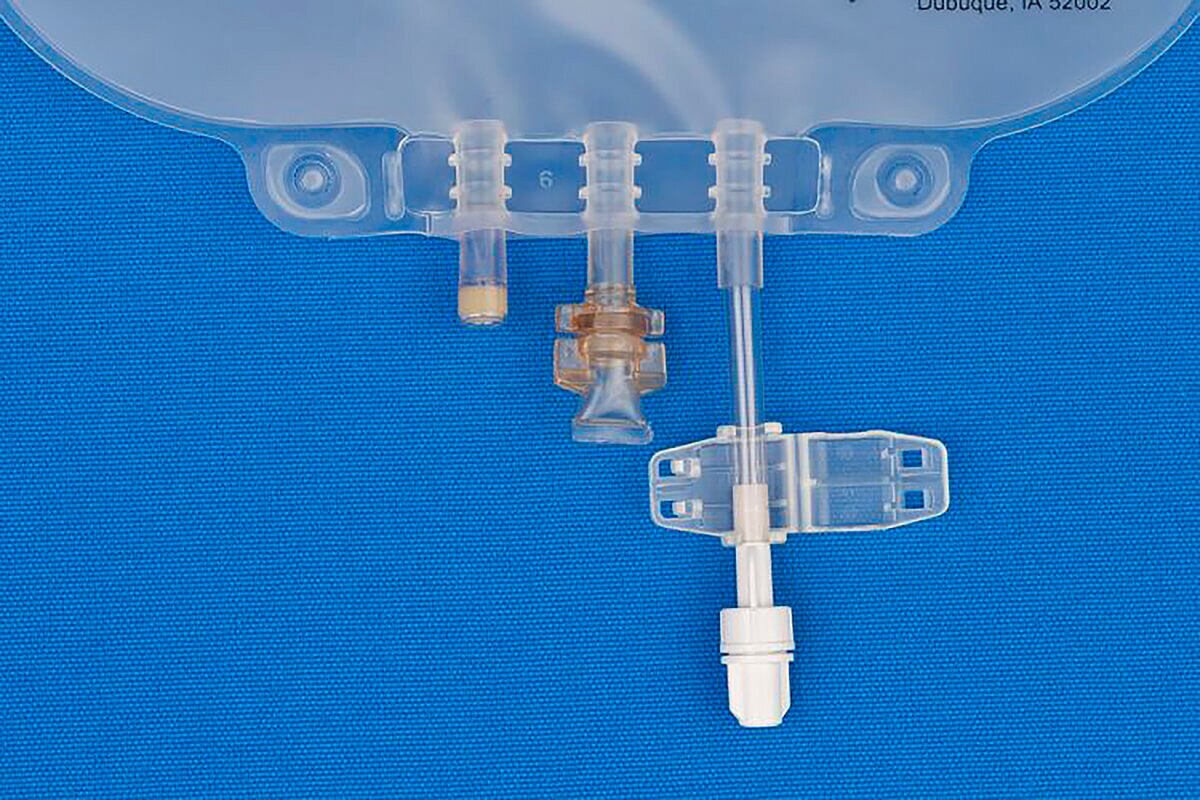

  • Close-up of the lower ports, clamp and male screw connector on the Metrix Secure 666 Series 3,000 mL TPN bag

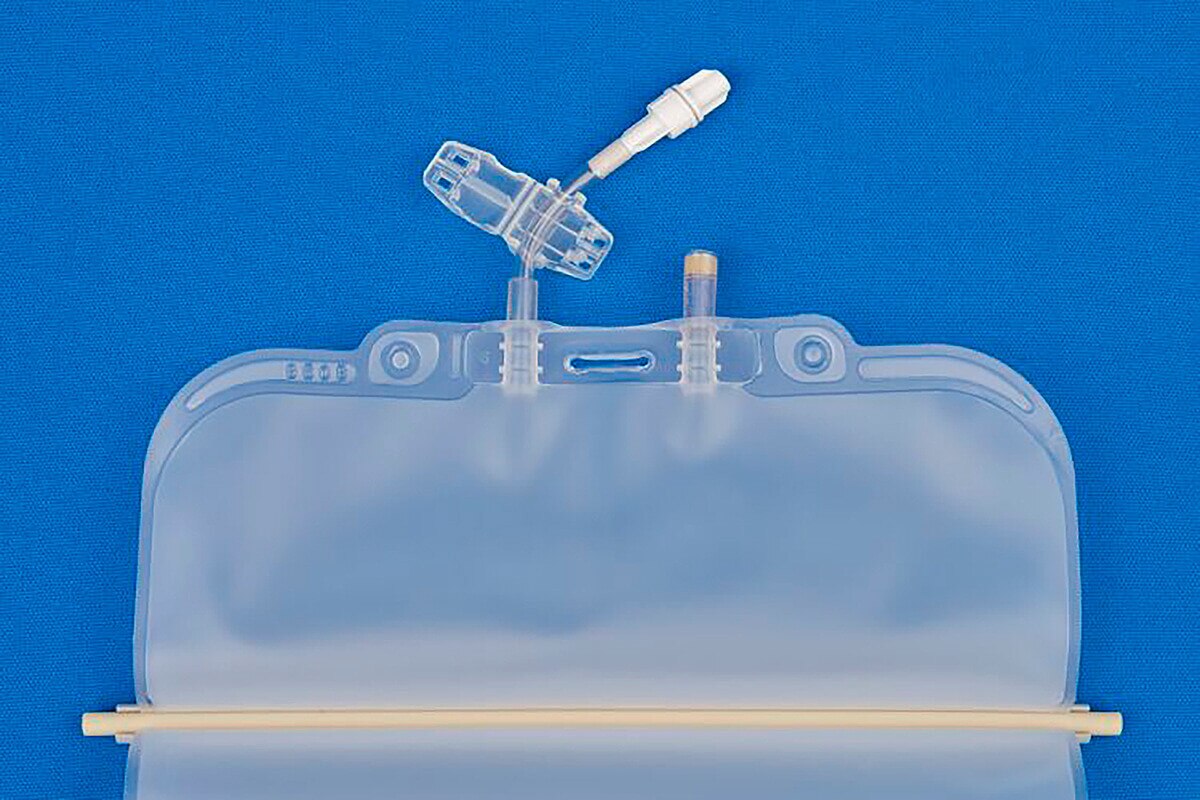

  • Close-up of the upper chamber ports and clamp on the Metrix Secure 666 Series 3,000 mL TPN bag

Secure 666 Series EVA Legless Dual-Chamber TPN Bags with Male Screw Connector

(0)No Reviews yet
SKU: 666
Back

Details

Metrix Secure 666 Series EVA Legless Dual-Chamber TPN Bags are single-use containers available in 1,500 mL, 3,000 mL, and 4,000 mL capacities for preparing, storing, and transferring parenteral admixtures. Featuring dual chambers that keep fat emulsion separated from other TPN components until mixing, each legless container includes a male large-bore screw connector, additive port, administration port, non-reopening clamp, and sterile, nonpyrogenic fluid path beneath undisturbed covers.



Material/Structure

  • Ethyl vinyl acetate (EVA) container construction
  • Dual-chamber configuration
  • Legless design
  • Male large-bore screw connector with cap
  • Additive port
  • Administration port
  • Attached non-reopening clamp
  • Ports and port tubes contain TOTM-plasticized PVC
  • Not made with natural rubber latex or DEHP
  • Model 66615: 1,500 mL total capacity with 250 mL upper and 1,250 mL lower chambers
  • Model 66630: 3,000 mL total capacity with 500 mL upper and 2,500 mL lower chambers
  • Model 66640: 4,000 mL total capacity with 500 mL upper and 3,500 mL lower chambers
  • Each chamber is rated for 10% overfill
  • Single-use construction
  • Nonpyrogenic fluid path beneath undisturbed covers
  • Sterile



Cleanroom Environment

  • Sterile, nonpyrogenic fluid path beneath undisturbed covers supports controlled parenteral admixture preparation.
  • Manufacturer documentation identifies an ISO Class 8 cleanroom environment.
  • Dual-chamber configuration maintains separation of fat emulsion from other TPN components until mixing is required.
  • Legless design allows compatible gravity fill-set legs to be selected separately for the intended compounding workflow.
  • Suitable for controlled pharmacy environments preparing TPN and other prescribed parenteral admixtures.



Benefits

  • Separate chambers support improved inspection and stability by keeping fat emulsion apart from other TPN components.
  • Available 1,500 mL, 3,000 mL, and 4,000 mL capacities accommodate different parenteral nutrition requirements.
  • Each chamber is rated for 10% overfill to provide additional preparation capacity.
  • Legless design provides flexibility for use with separately selected compatible gravity fill sets.
  • Non-reopening clamp supports controlled separation and mixing of the chamber contents.
  • EVA container is not made with natural rubber latex or DEHP.
  • Three-year shelf life when unfilled supports inventory planning and storage.



Applications

  • Total parenteral nutrition compounding
  • Separation of fat emulsion from other TPN components
  • Parenteral admixture preparation and storage
  • Transfer of prescribed fluids and medications
  • Hospital and compounding pharmacies
  • Home infusion and nutrition-support programs
  • Controlled pharmacy preparation environments
Back

Packaging

Case: 42 Units per Case

Total: 42 EVA Dual-Chamber TPN Bags
